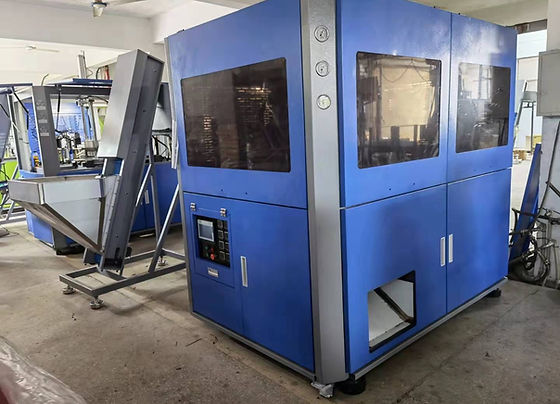

Automatic Plastic Bottle Making Machine used in production to make pet plastic bottles of different shapes and sizes.   Model:   OG-3 Automatic 3 Cavity Bottle Blowing Machine ITEM            UNIT    OGM-3 Theoretical output      Pcs/h   2200 PRODUCT Max. Volume     L       1.5 Max. height     mm      360 Max. diameter   mm      105 MOULD   Number of cavities      /       3 Mould plate dimension (L*H)     mm      490*490 Mould thickness mm      280 Mould opening stroke    mm      220 ELECTRICAL      Power           220-380V/ 50-60Hz Total Power     KW      18 Heating Power   KW      15 AIR SYSTEM      Operation Pressure      Mpa     0.8-1.0 Action Air Consuming    m3/min  ≥1.0 Blowing Pressure        Mpa     2.6-3.0 Blowing Air Consuming   m3/min  ≥1.6 MACHINE Main body dimension (L*W*H)     M       2.05*1.45*2.2 Main body weight        KG      1500 Preform Autoloader (L*W*H)      M       1.6*0.85*2.2 Preform Autoloder weight        KG      200 Bottle Conveyor (L*W*H) M       1.6*0.60*1.2 Bottle Conveyor weight  KG      80
